EXTREME EVO LED Dual Function Front & Triple Function Rear Combo Kit

Description

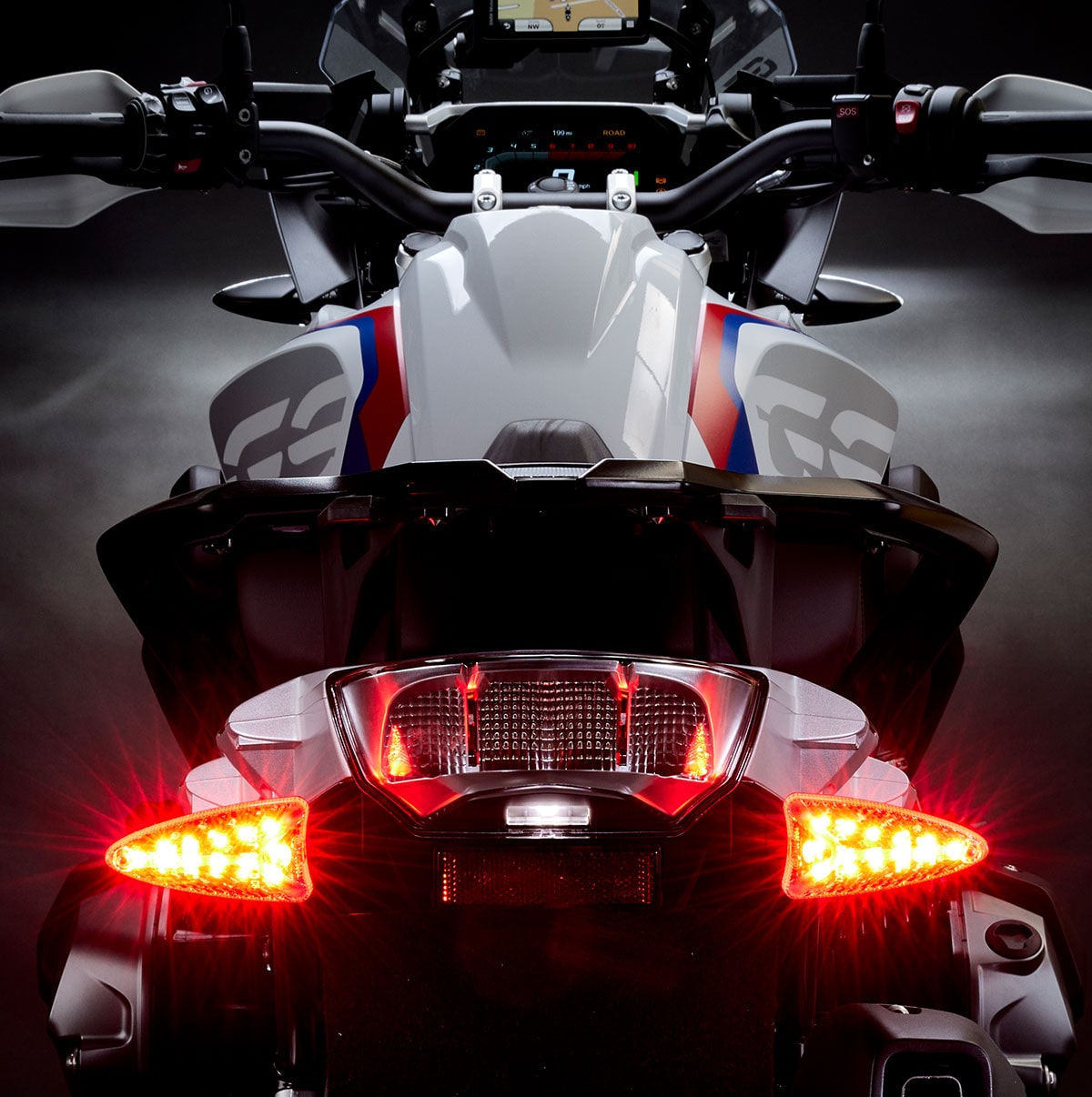

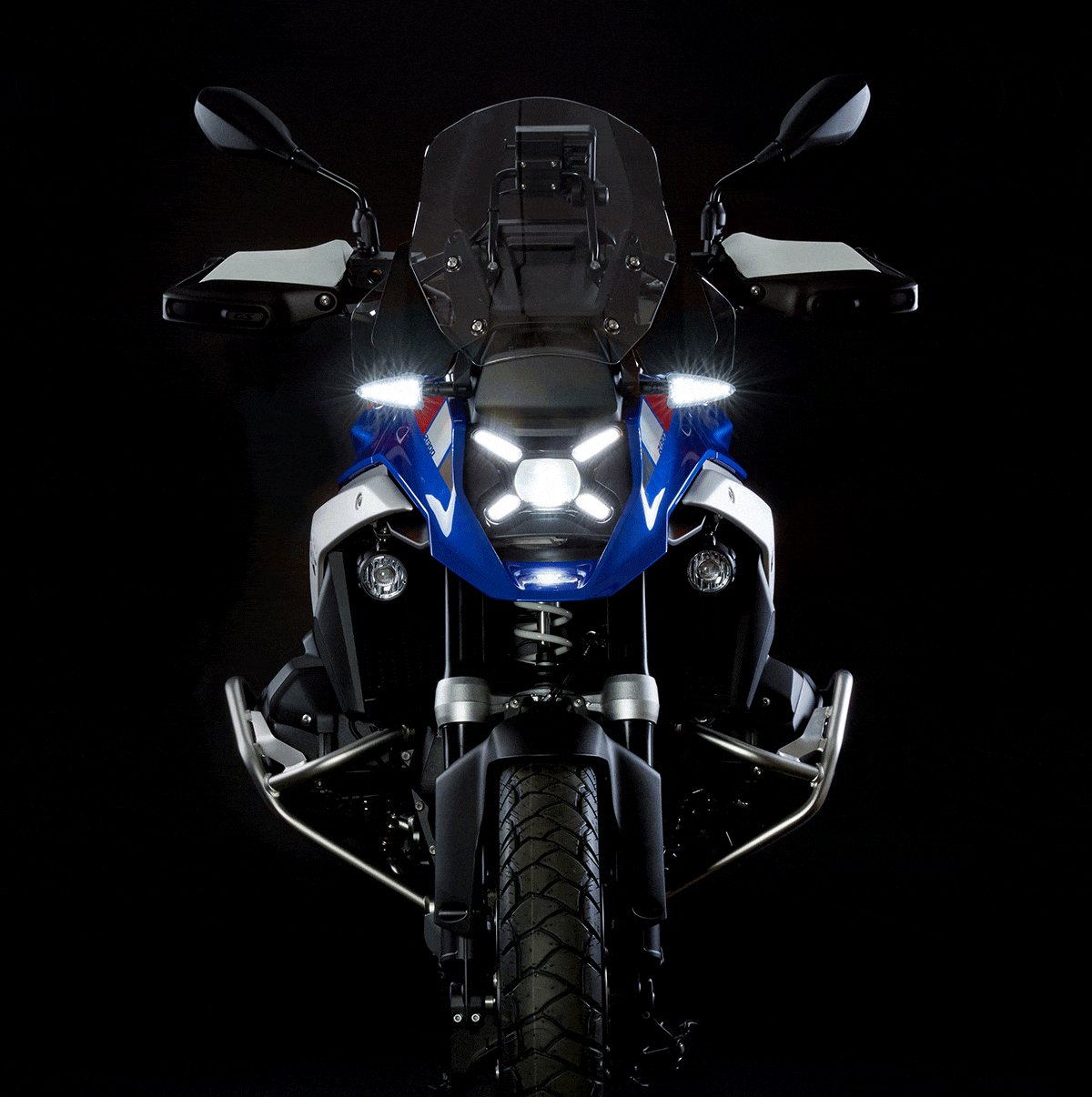

Combined into an attractive intelligent electronic circuit board design, our front dual and rear triple function kit offers our best ever performing multifunction turn signals :- 12 bright white LEDs for impressive daytime or nighttime illumination together with 12 amber LEDs for the turn signal function. The rear lights contain 12 amber LEDs for turn signals and 12 bright red LEDs as running lights, which offer a high intensity brake light function.

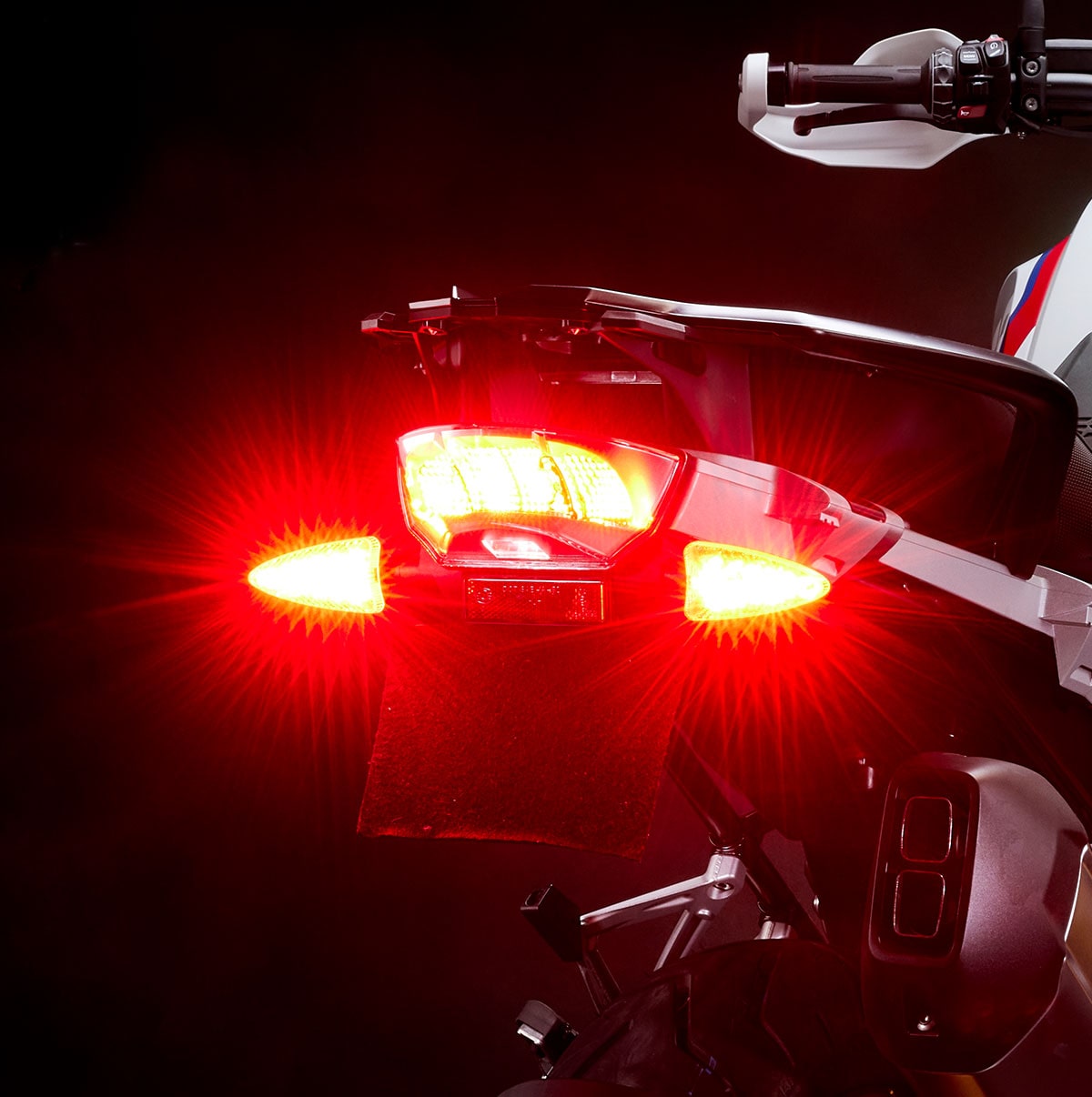

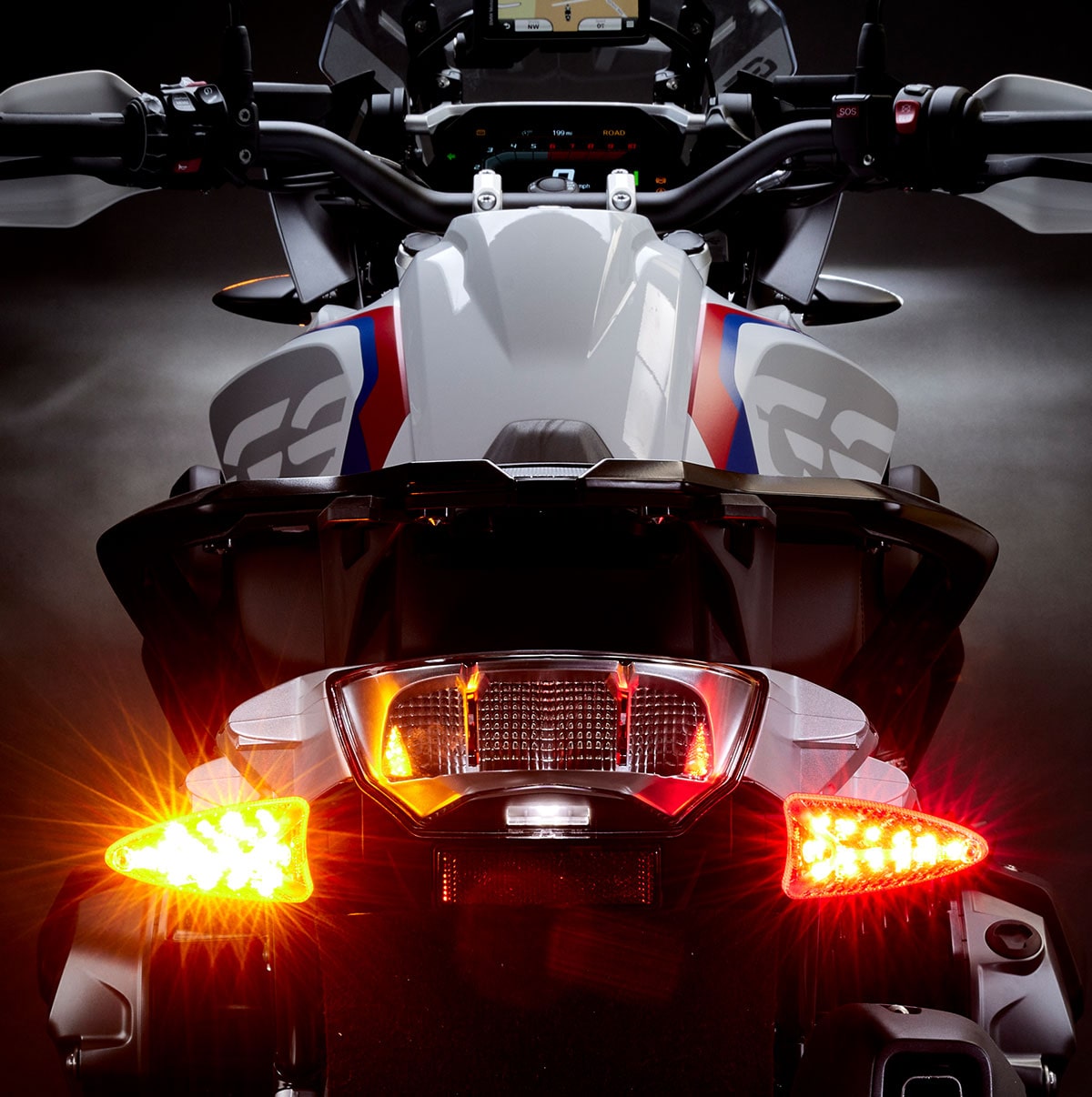

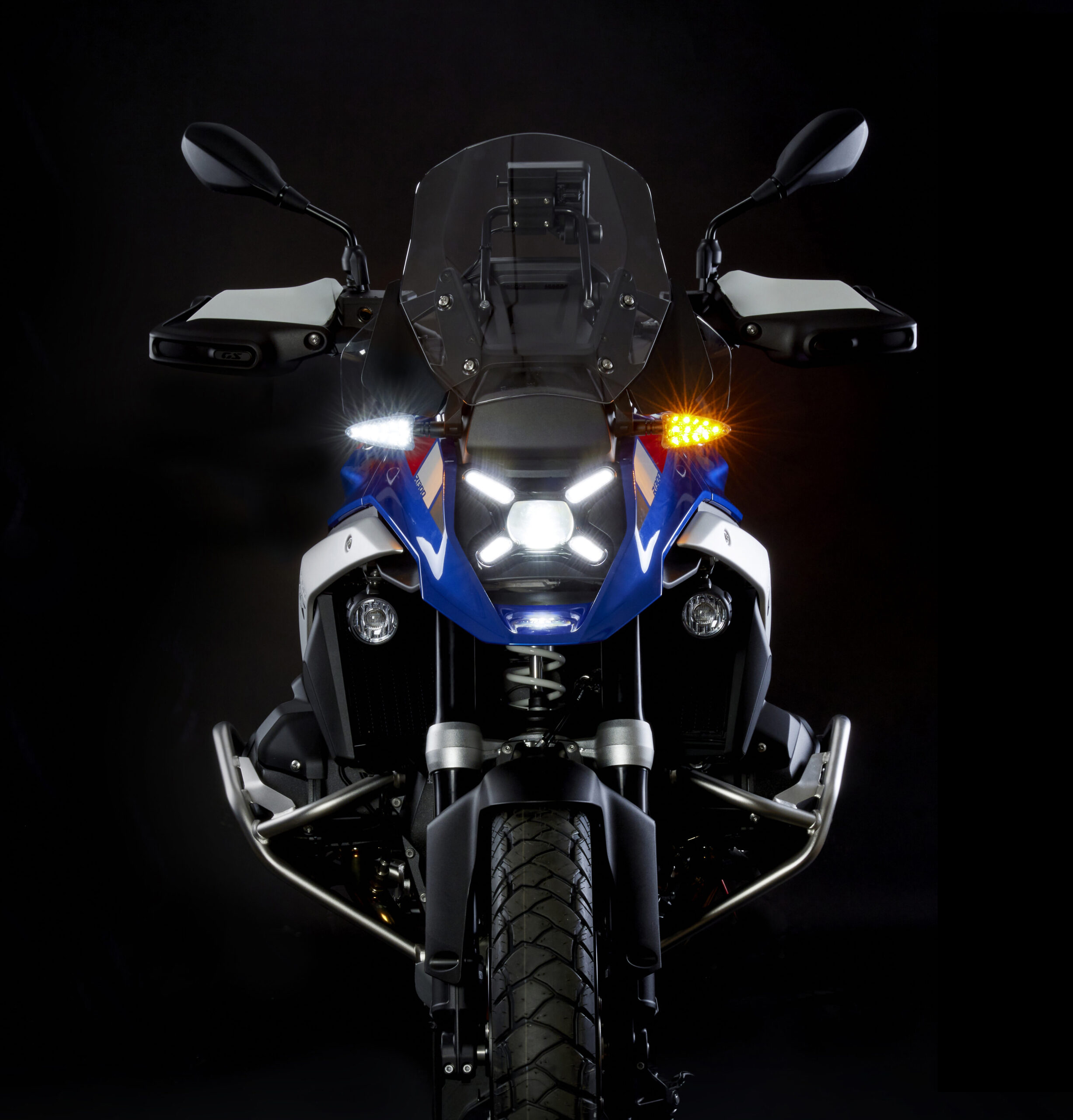

When the ignition is on, the driving lights are always on until you indicate. When indicating, the driving light goes out on the indicating side and flashes amber. Cancel your turn signal and the driving light comes back on. At the rear, these products work alongside your existing brake light, so you have up to three brake lights at all times for maximum conspicuity & safety. When indicating, the brake light goes out on the indicating side and the turn signal illuminates. Cancel the indicator and the brake light will come back on. The design always gives priority function to the turn signals when they are activated. Hazard lights will operate as normal.

Designed specifically for BMW R 1300 GS & GS/A from 2023 onwards (when fitted with the Enduro pack – turn signals mounted under the windscreen) and the BMW R 1250 GS/A from 2021 onwards

Note: These kits are also compatible with BMW GS models 21 – onwards model year bikes supplied without the factory fitted front low level amber running lights function.
Note: R 1300 GS / GSA: You can also purchase a conversion kit from Weiser-Technik to move the turn signals from the hand guards to under the windscreen.

Key Features

• Complete high intensity LED Dual Function front driving lights/turn signals and Triple Function rear running/brake lights/turn signals kit
• Automotive industry approved LEDs from OSRAM
• Up to 10x brighter than OEM lights
• OSRAM LEDs come in bright, vibrant colors for maximum visibility
• Compatible with the bikes CAN-bus motorcycle PWM signal electronics
• Guaranteed no fault codes
• Kits include all housings and OEM turn signal cables & connectors.
• Simple self-installation – full installation kits and directions included
• Tech support available by phone and online
• Installation is non-invasive no OEM wires are cut. No brackets, drilling or clamping required.
• Increases conspicuity and safety without spoiling the look of your bike
• 4-year warranty

Designed and manufactured in both the USA and the UK.

Front Kit – Package Includes:

• 2 x  Dual Function LED Driving Light/Turn Signals
• 2 x Weiser wires 900 mm long (Black)
• 1 x Extension wire 900 mm long
• 5 x zip ties
• 1 x Posi Twist
• 1 x Posi Tap
• 1 x Posi Lock
• 2 x Locking Keys
• Installation instructions and circuit diagram

Rear Kit – Package includes:

• 2 x Triple Function LED Running/Brake Light/Turn Signals
• 2 x Weiser wires 900 mm long (Black)
• 2 x Weiser wires 900 mm long (Grey)
• 5 x zip ties
• 2 x Posi Twist
• 1 x Posi Tap
• 1 x Posi Lock
• 2 x Locking Keys
• 1 x Solid State Dual electronic relay with battery termination

Technical Spec:

• Compatible with OEM PWM (Pulse Width Modulation) signals from CAN-bus
• 12V
• 600 mA (each pair)

Click image to download PDF guide
