Description
Ride with Confidence with the Third Eye Motorcycle Radar & Blind Spot System!
With advanced rear motorcycle radar monitoring, you’ll never have to worry about any hidden dangers while on the road.
Our motorcycle radar system detects dynamic targets from both sides and the rear of your motorcycle, giving you peace of mind with every ride.
You’ll receive both visual and audible alerts to ensure you’re always aware of your surroundings.

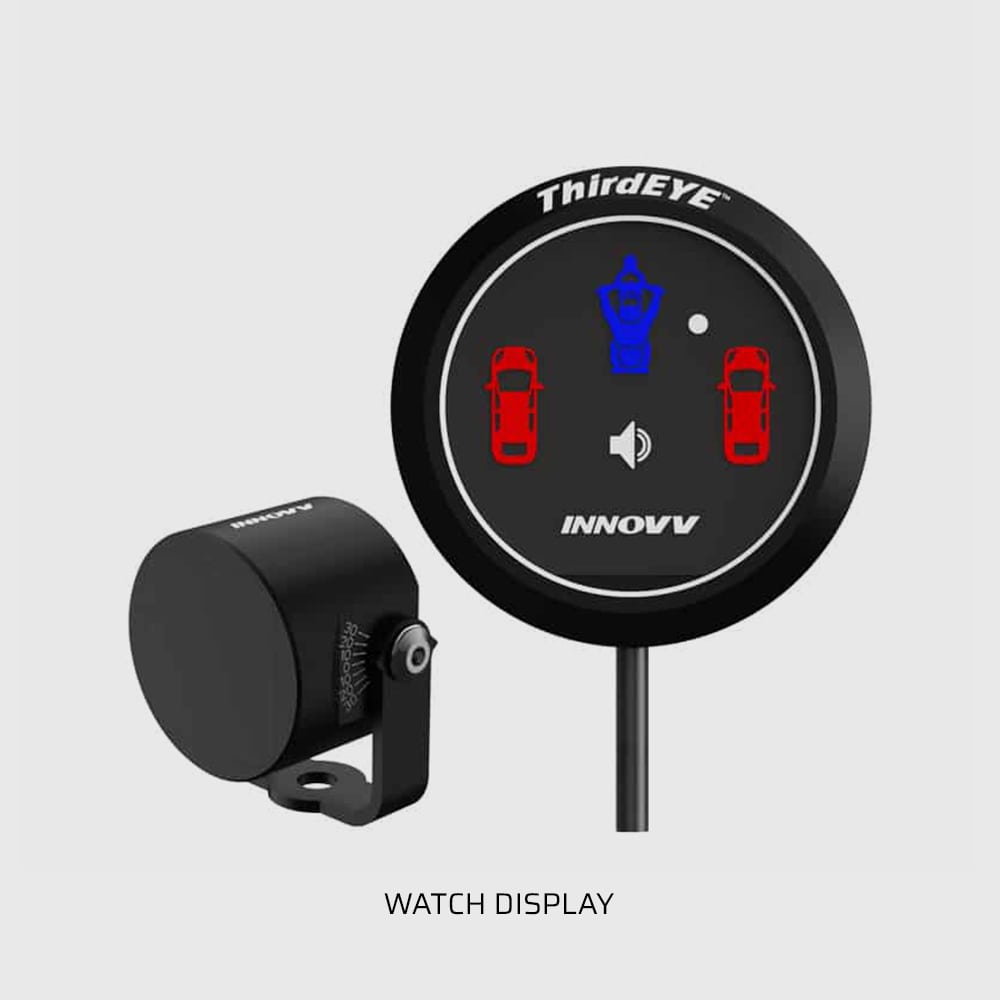

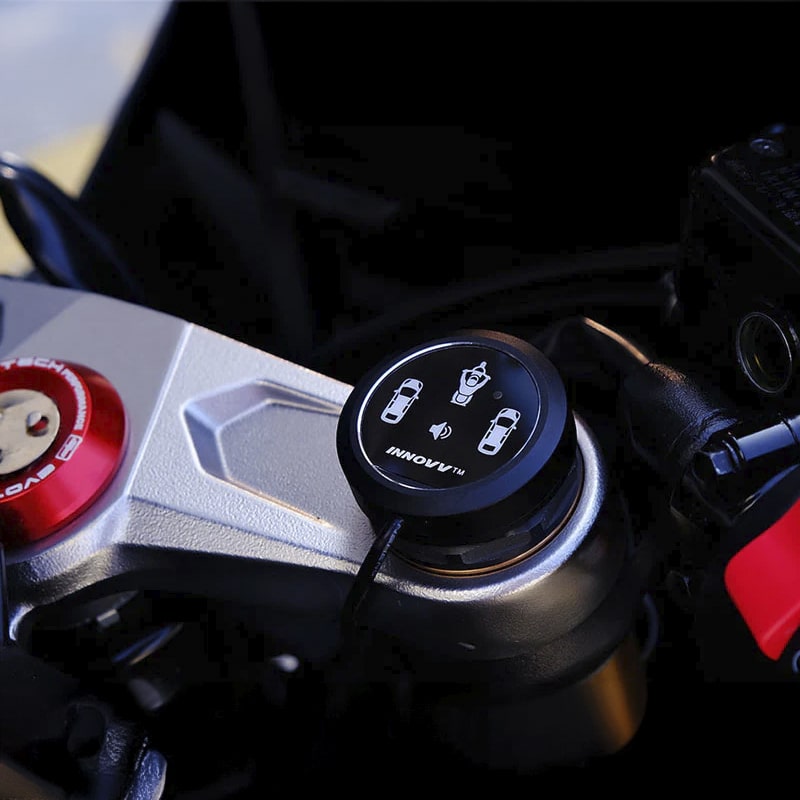

Choose between two head up display options, Watch Display or Mirror display. See the full description below for full details of each option.
Trust us, the Third Eye is your extra set of eyes on the road. Keep yourself and your motorcycle safe with the Third Eye motorcycle radar & blind spot system – Your Ultimate Riding Companion.
Employing a millimetre wave radar with a frequency range 77-79GHz, and combining the detected information with a software algorithm, the ThirdEYE can detect dynamic target vehicles from both sides and rear of your motorcycle. Providing visual and audible alerts/warnings from your selected heads-up display type.
Product Detail
- Wide field of view – 150° horizontal detecting angle maximizing the detecting range, which allows the rider more time to react and respond to emergencies.
- High Precision: The radar has a 77-79Ghz sensor which enables the system to achieve high performance in the range resolution, velocity measurement, and accuracy.
- Durable and flexible: High-end aluminium alloy case and high technology offer a stable performance against harsh environments such as temperatures from -40℃ to +80℃.
- Detecting 64 targets simultaneously in a 50m maximum detection range helps the driver get more time to react and respond to avoid the accident.
- Easy to Install: Small and Compact.
- Easy to install. Designed as self fit.
- Weatherproof. IP 67 rating. Protects against water and dust.
Protects and monitors in 3 ways :
- BSD (Blind Spot Detection System) – The detection range of the BSD mode is from 0.2Mtr to 6Mtr
- LCA (Lane Change Assistance) – Detects targets in a range from 0.2Mtr to 50Mtr when TTC (time to collision) is less than or equal to 3 seconds
- RCW (Rear collision Warning) – Detects targets in a range from 0.2Mtr to 50Mtr when TTC (Time to collision) is less than or equal to 3 seconds
TECH SPEC
| Working Voltage | 9 ~16V DC |
| Power Consumption | <3.5W |
| Display Size | Watch Display: Dia 50 mm x13 mm Mirror Display: 35 mm x14 mm (each piece) |
| Weight of Display | Watch Display: 130 g Mirror Display:100 g |
| Radar Detector Size | Dia 36 mm x 26 mm |
| Weight of Radar Detector | 90 g |
| Storage Temperature | -40℃ ~+85℃ |
| Working Temperature | -40℃ ~+80℃ |
| Waterproof Rate | IP67 |
| Working Frequency | 77~79 GHz |
| Horizontal Angle | 150° |
| Pitch Angel | ±25° |
| Detecting Range | 0.2 m~50 m |
| Accuracy of Detecting Range | 0.11 m |
| Detecting Velocity Range | -210 km/h~210 km/h |
| Data Updating Frequency | Every 50 ms |
| Maximum Detecting Targets | 64 |
